ISO Extended Spiral Point Taps have become indispensable in precision threading across industries like automotive, aerospace, and general mechanical manufacturing. With innovative spiral groove design, high-performance coatings, and robust material selection, these taps ensure smooth chip evacuation, superior durability, and consistent thread quality. This comprehensive guide explores their features, applications, specifications, and maintenance tips, helping professionals make informed decisions when selecting taps for high-efficiency production.
Table of Contents
1. Overview of ISO Extended Spiral Point Taps

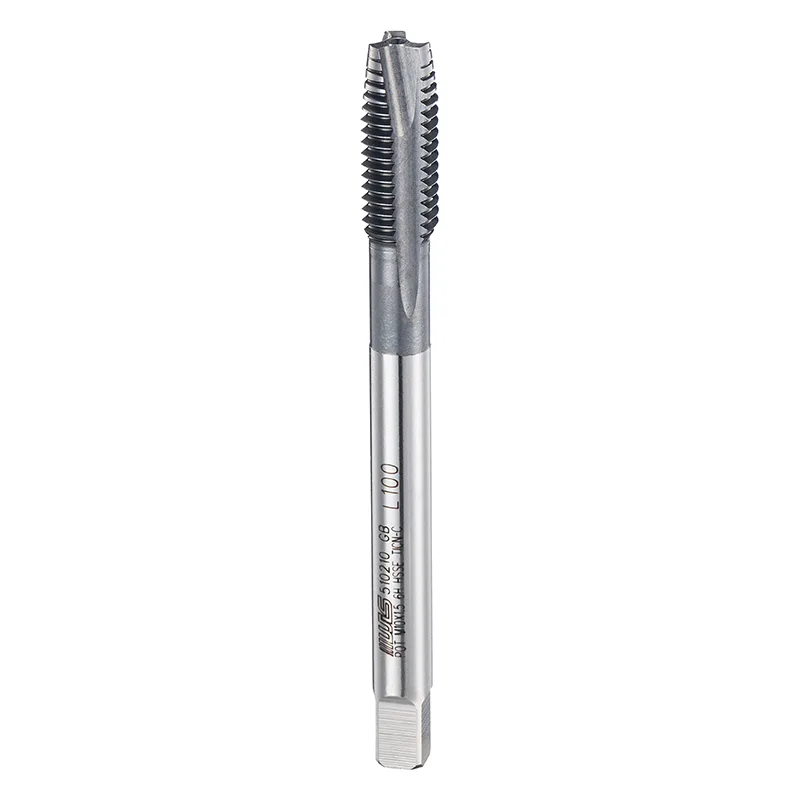

ISO Extended Spiral Point Taps, offered by Wilson, are specialized tools designed for high-precision threading in through-hole and blind-hole applications. Their spiral point geometry ensures efficient forward chip evacuation, preventing damage to machined threads and enhancing productivity.
These taps are widely recognized for their performance when machining steel, cast iron, and non-ferrous metals such as copper and aluminum, making them a versatile solution for modern manufacturing challenges.
2. Design Features and Advantages
- Spiral Groove Design: Optimized for chip evacuation, reducing jamming and thread damage.
- Extended Length: Provides better reach for deep hole threading operations.
- Precision Manufacturing: Maintains thread accuracy with ISO 4H/5H/6H tolerance classes.
- Enhanced Efficiency: Reduces cutting resistance and improves machining speed.
The careful engineering behind the spiral groove ensures that chips are efficiently guided either forward or upward depending on the hole type, maintaining consistent thread quality across diverse materials.
3. Materials and Coatings
The performance of ISO Extended Spiral Point Taps is strongly influenced by their material and coating:
- High-Speed Steel (HSS): Provides excellent hardness and toughness, essential for precision threading.
- Special Coatings: Reduce friction, prevent overheating, and increase tool life, even under high-intensity operations.
- Wear Resistance: Ensures stable performance with difficult-to-machine materials.
4. Applications Across Industries
ISO Extended Spiral Point Taps are widely used in:
- Automotive Parts Manufacturing: Ensures accurate threading in engine components, brackets, and fasteners.
- Aerospace Precision Machining: Maintains high-quality threads in critical components such as landing gear and turbine parts.
- General Mechanical Processing: Ideal for custom metal parts, molds, and industrial equipment fabrication.
5. Technical Specifications
| Parameter | Specification | Remarks |
|---|---|---|
| Product Model | ISO Standard Spiral Flute Taps | M2-M24, Metric thread series |
| Tolerance Class | ISO 4H/5H/6H | 6H for precision applications |
| Material | High-Speed Steel with optional coating | Heat-treated for high hardness and toughness |
| Design Feature | Extended Spiral Point | Efficient chip evacuation and deep hole reach |
6. Selection Guide for Optimal Performance
Choosing the right ISO Extended Spiral Point Tap depends on:
- Material to Be Machined: Match HSS or coated taps to steel, aluminum, or cast iron.
- Hole Type: Use forward-spiral for through-holes and upward-spiral for blind holes.
- Thread Tolerance: Ensure ISO tolerance class aligns with precision requirements.
- Production Volume: High-volume operations benefit from coated taps for longer tool life.
7. Maintenance and Longevity Tips
- Regularly inspect taps for wear or chipping to prevent thread damage.
- Use appropriate cutting fluid to reduce friction and heat buildup.
- Store taps in protective cases to prevent accidental damage.
- Replace taps at first sign of diminished performance to maintain thread quality.
8. Frequently Asked Questions (FAQ)
- Q1: Can ISO Extended Spiral Point Taps be used on aluminum?
- A1: Yes, these taps are suitable for non-ferrous metals like aluminum and copper, especially when coated to reduce friction.
- Q2: What is the advantage of extended spiral design?
- A2: It improves chip evacuation in through-holes and blind holes, reducing thread damage and machine downtime.
- Q3: How do I choose the correct tolerance class?
- A3: ISO 6H is recommended for high-precision applications, while 4H/5H are suitable for general threading tasks.
- Q4: Does Wilson offer custom sizes?
- A4: Yes, Wilson provides customization based on customer specifications to meet diverse industrial requirements.
- Q5: How should I maintain the taps for long life?
- A5: Regular cleaning, proper storage, and using cutting fluids during machining will significantly extend the tap’s service life.
9. Conclusion
ISO Extended Spiral Point Taps by Wilson combine advanced design, superior materials, and precise manufacturing to deliver exceptional threading performance. They are ideal for applications demanding efficiency, precision, and durability. Choosing the right tap ensures consistent high-quality threads, minimizes downtime, and improves overall productivity.
For professional guidance, custom requirements, or bulk orders, feel free to contact us today and experience the reliability of Wilson ISO Extended Spiral Point Taps in your production line.
