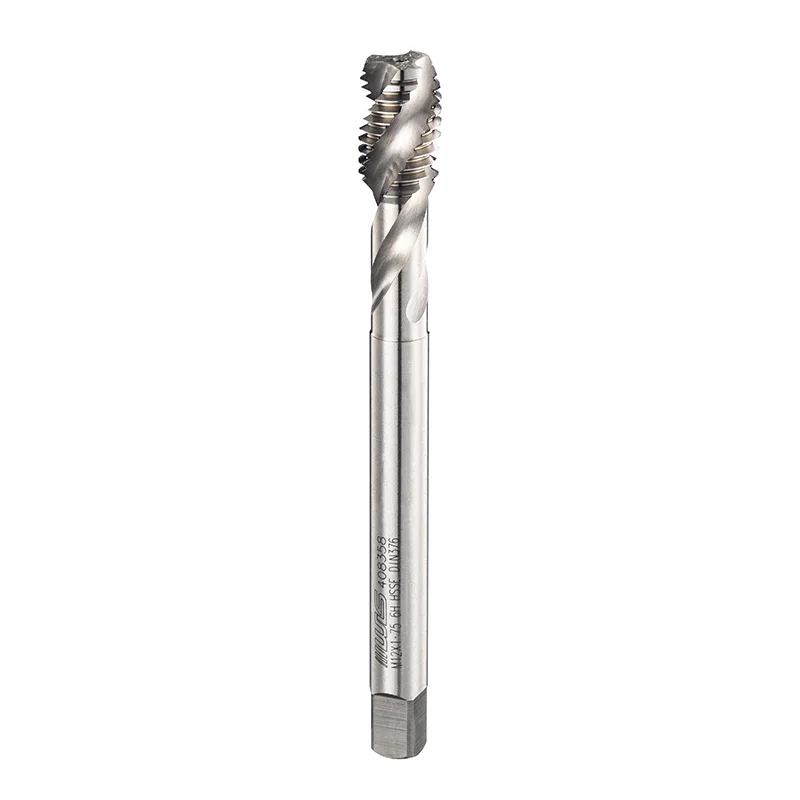

DIN Spiral Flute Taps With No Coating
Wilson wholesale DIN Spiral Flute Taps with No Coating are relatively inexpensive due to the lack of additional coating. Users can directly see the natural color of the metal, making it easier to determine wear and tear. It is suitable for tapping operations on various materials and is a reliable choice when pursuing economic practicality and good chip removal performance.
DIN Spiral Flute Taps With No Coating is manufactured according to DIN 371/374 standard, using high-speed steel material. After heat treatment, the hardness reaches 62-64HRC, and it has a 45 ° optimized spiral angle design to ensure smooth chip removal. The product is particularly suitable for processing through holes and blind holes in materials such as carbon steel, alloy steel, and cast iron. Its precision grinding process ensures that the thread accuracy meets DIN level 2 standards, and the straight grain rolling handle design ensures stable clamping. Compared to coated products, it has significant cost-effectiveness advantages.
Processing suggestions
1.It is recommended to use a cutting speed of 8-12 meters per minute when processing carbon steel.
2. It is recommended to use a cutting speed of 5-8 meters per minute when processing cast iron, and it is recommended to use cutting fluid in conjunction with it.
Simultaneously providing non-standard customization services (delivery time 15-30 days) and professional technical guidance, bulk purchases can enjoy exclusive discounts, making it an ideal choice for cost sensitive customers.
Wilson DIN Spiral Flute Taps With No Coating Parameter (Specification)
|
Parameter Category |
Specification Description |
Technical Indicators |
Remarks |
|
Surface Treatment |
Bright Finish (Uncoated) |
Surface Roughness: Ra ≤ 0.8 μm |
No coating for improved ductility; ideal for non-hardened steels |
|
Application |
Machine Tapping |
Suitable Materials: Aluminum, Low-Carbon Steel, Copper Alloys Preferred for through holes |
Requires cutting fluid for optimal performance |
Hot Tags: DIN Spiral Flute Taps With No Coating, Uncoated Spiral Taps, Industrial Flute Taps Manufacturer
