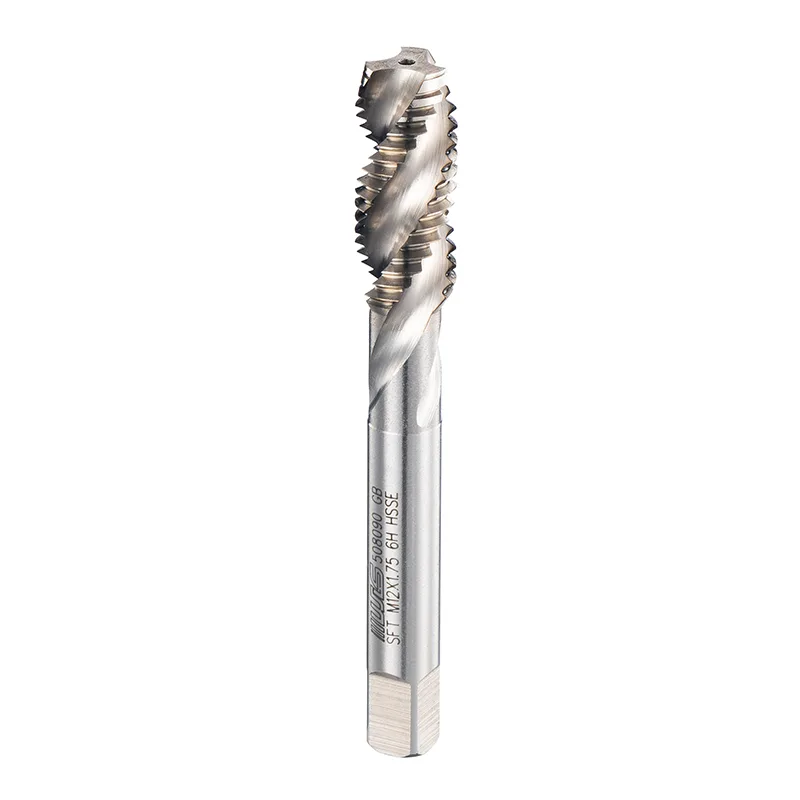

ISO Spiral Flute Taps With No Coating

Wilson's ISO Spiral Flute Taps With No Coating are made of M35/M42 cobalt-containing high-speed steel, with a precision heat treatment hardness of HRC63-65. When processing low-carbon steel and alloy steel (HRC<30), it shows an excellent balance of strength and toughness, while also having the advantage of high cost performance.

ISO Spiral Flute Taps With No Coating is a thread machining tool that complies with the GB/T standard. Its core features are the design of the spiral groove structure and the material characteristics without coating. This tap adopts a spiral groove type with an adjustable angle of 10 ° -50 °, which can effectively guide the chips to be discharged along the spiral groove. It is particularly suitable for blind hole processing with a hole depth of ≤ 3D, which can significantly improve the surface smoothness of the thread and reduce the risk of chip blockage. Its material is usually cobalt containing high-speed steel (such as M35/M42), which is subjected to precision heat treatment to achieve a hardness of HRC63-65. It exhibits a good balance of strength and toughness when processing low carbon steel, alloy steel and other materials. Compared to coated taps, ISO Spiral Flute Taps With No Coating is more suitable for processing non high hardness materials (HRC<30) and has a cost advantage. However, in terms of wear resistance, it shortens the lifespan of TiN coated taps by about 60-70%. This product strictly follows the GB/T 968 accuracy standard and can meet the thread accuracy requirements of conventional industrial scenarios.

Parameter (Specification)

Wilson ISO Spiral Flute Taps With No Coating with no coating
